Description

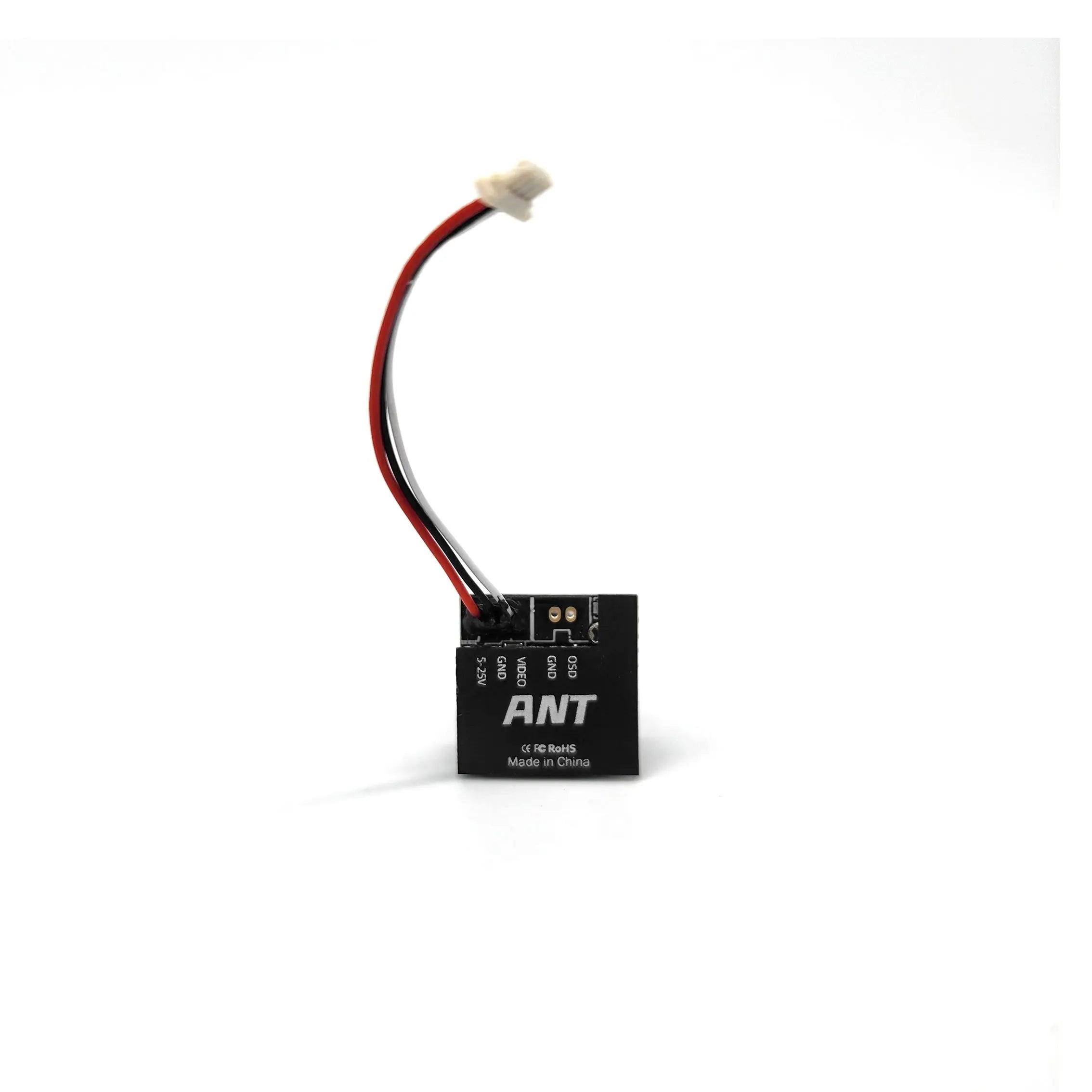

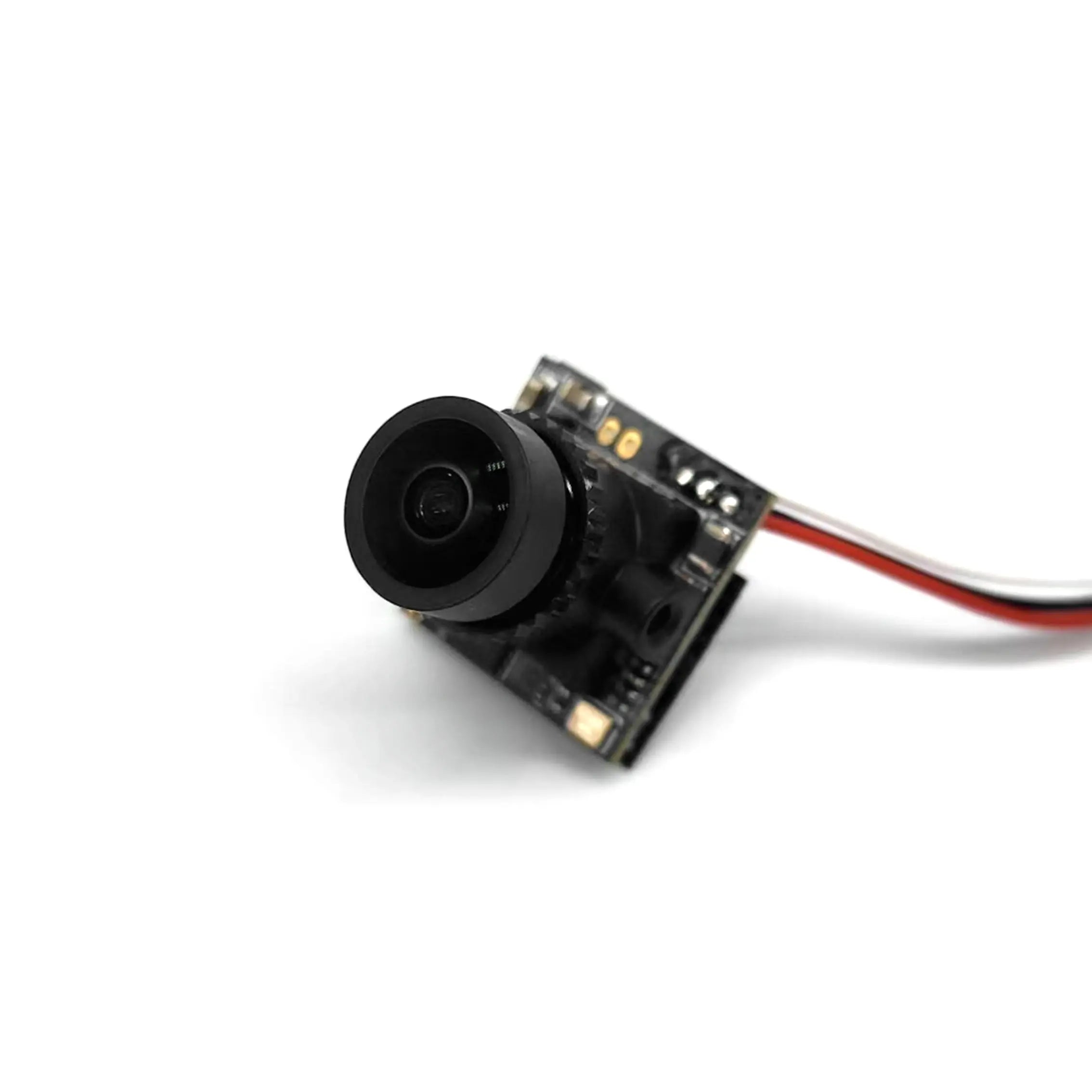

NewBeeDrone × CADDX Nano ANT Camera for BLV5 – Plug-and-Play Replacement

The NewBeeDrone × CADDX Nano ANT Camera is the ultimate replacement camera for AcroBee BLV5 BNF drones, offering enhanced image quality and seamless integration. Designed specifically for the BeeBrain BLV5 AIO flight controllers, this camera comes with a pre-installed JST0.8 3-pin connector for effortless plug-and-play installation.

Upgraded from the Runcam Nano 4, the CADDX Nano ANT Camera delivers sharper visuals with its 1200 TVL resolution compared to the 800 TVL of its predecessor. Featuring a 1 3” CMOS sensor, global WDR, and 3D DNR, it excels in both bright and low-light conditions, ensuring clear and vibrant FPV footage. Lightweight at just 2g and compatible with 16:9 or 4:3 aspect ratios, this camera is perfect for all AcroBee BLV5 pilots.

This replacement camera is tailored for FPV enthusiasts seeking high performance and reliability, making it the ideal upgrade for smoother and more immersive flying experiences.

Spec:

•Model: Caddx Ant

•Image Sensor: 1 3” CMOS Sensor

•Horizontal Resolution: 1200 TVL

•TV System: NTSC or PAL

•Menu Control: Supported

•Aspect Ratio: 16:9 or 4:3 (Switchable)

•Synchronization: Internal

•Electronic Shutter: PAL: 1 50100,000; NTSC: 1 60100,000

•Signal-to-Noise Ratio (S N): >52dB (AGC OFF)

•Video Output: CVBS

•Lens: 1.8mm

•Minimum Illumination: [email protected]

•Auto Gain Control (AGC): Yes

•Backlight Compensation (BLC): Yes

•Wide Dynamic Range (WDR): Global WDR

•Digital Noise Reduction (DNR): 3D DNR

•Dimensions: 14mm x 14mm (with bracket: 19mm x 19mm)

•Power Input: DC 3.7V-18V

•Operating Temperature: -20°C to 60°C

•Operating Humidity: 20%~80%

•Weight: 2g

•Connector: JST0.8 3-Pin (Pre-installed for plug-and-play with BeeBrain BLV5 AIO flight controllers)
